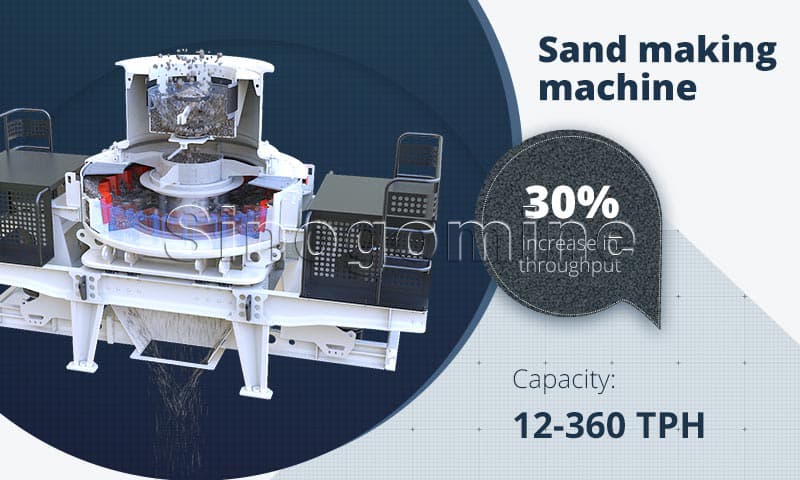

VSI(vertical shaft impact) Crusher/Sand Making Machine
- Feeding Siz:30-50mm
- Capacity:120-520t/h
The VSI crusher sand making machine is a third-level crushing equipment, and is the main equipment in the field of artificial sand making and stone shaping.
The VSI sand making machine is mainly used for construction sand making, and is an advanced equipment for the production of artificial sand.
The VSI crusher uses high-speed rotating materials to crush each other and the materials to be crushed by friction (rock-to-rock).
It is designed for highways, high-speed railways, high-rise buildings, municipal, hydropower dam construction, The concrete mixing plant provides high-quality sand and gravel aggregates.
-
(VSI Sand Making Machine) -
(Mobile VIS >>)
Video of VSI(vertical shaft impact) Crusher/Sand Making Machine:
Advantage
-
Large processing capacity and high output.
-
The product has excellent grain shape.
-
Hydraulic device easy to maintain and easy to operate.
Technical Data
| Model | VSI 7611 | VSI 8518 | VSI 9526 | VSI 1140 | VSI 1145 | |
| Capacity | cascade and central feeding | 120-180 | 200-260 | 300-380 | 450-520 | 500-640 |
| Fully central feeding | 60-90 | 100-130 | 150-190 | 225-260 | 250-360 | |
|
Max. feeding size(mm) |
Soft material | <30 | <35 | <40 | <45 | <45 |
| Hard material | <25 | <30 | <35 | <40 | <40 | |
| Rotation speed(r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | 1100-1310 | |
| Double motor power(kw) | 110-150 | 180-220 | 264-320 | 400-440 | 400-440 | |
| Overalldimension LxWxH(mm) | 3850x2136x2360 | 4564x2400x2661 | 5020x2535x3050 | 5034x2760x3170 | 5100x2790x3320 | |
Related Projects

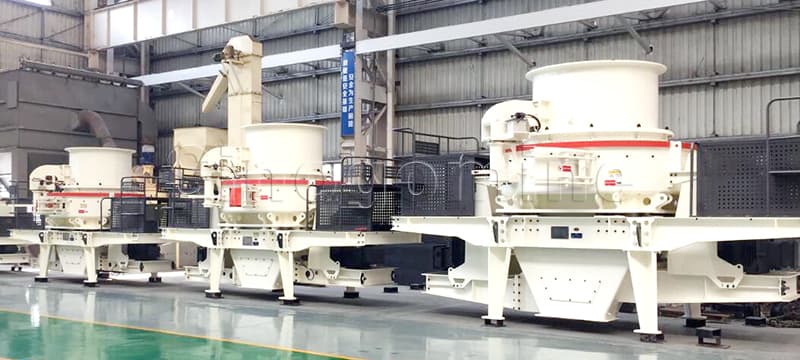

Sinogomine factory is the one with almost 20 years of manufacturing experience in manufacturing crushing machinery the total factory area reached 230000 square meters of which the workshop area was 112000 square meters our main products are stone crushers and briquette press machines.
-
( Sinogomine Factory) -
( Sinogomine Factory )
