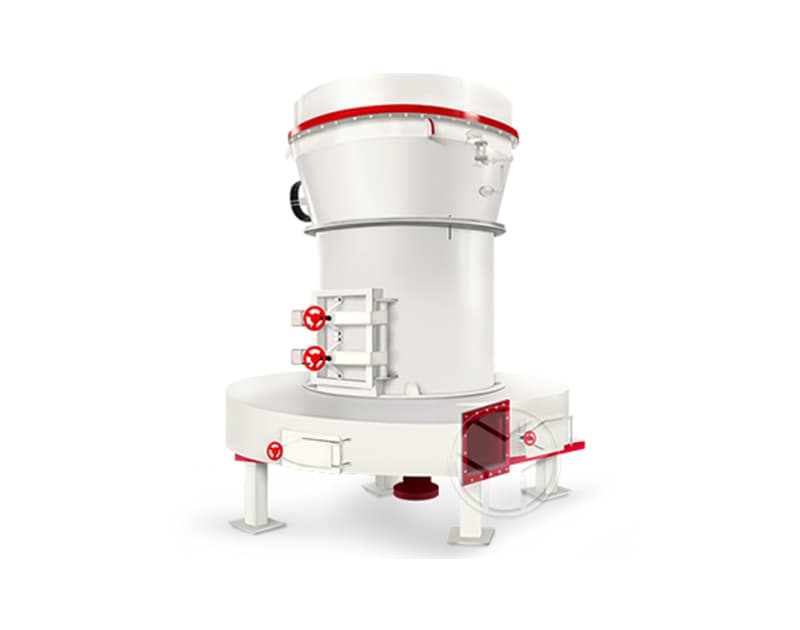

Raymond Mill
- Output Size(mm): 0.173-0.044
- Feeding Size(mm): ≤30
1. Raymond Mill Application :
Raymond (Euro Type) mills can be used for the high-fine power processing in minerals, chemicals, construction, and other industries. Raymond mills can be used to process more than 280 non-flammable and explosive materials with a Mohs hardness of less than 9.3 and a humidity of less than 6%, such as barite, calcite, and potassium feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass, insulation, etc.
2. Raymond Mill Structures:

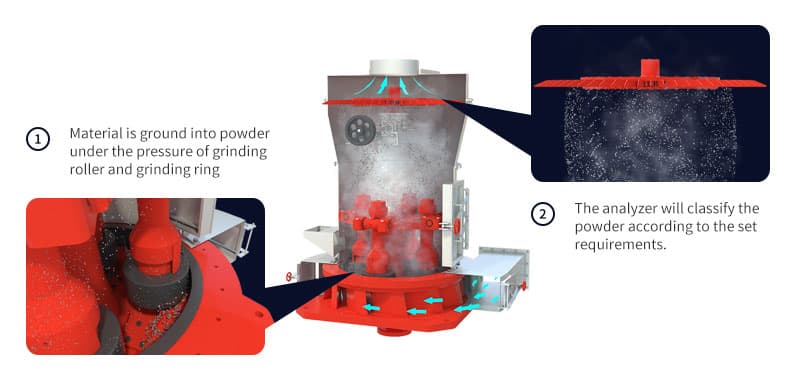

The main structures: the main body consists of a frame, an air inlet volute, scraper blade, star rack, a grinding roller, a grinding ring, air classifier, etc.
(Raymond mill inside structures)
Video of Raymond Mill:
Advantage
-
Gave higher efficiency and lower power consumption.
-
Small footprint and small one-time investment.
-
Strong wear resistance and reliable operation.
Technical Data
| Model | 4525 | 4119 |
| Feeding Size(mm) | ≤30 | ≤25 |
| Output Size(mm) | 0.173-0.044 | 0.173-0.044 |
| Shift Output of Different Material Fineness(t) | 16-176 | 8-78 |
| Rotation Speed of Central Shaft(r/min) | 82 | 105 |
| Ring Diameter(mm) | 1770 | 1400 |
| Roller Diameter(mm) | 450 | 410 |
| Roller Height(mm) | 250 | 190 |
| Main Motor(kw) | Y315M-4-132 | Y280S-4-75 |
| Fan Motor | Y315M-4-132 | Y280S-4-75 |
| Analyzer Motor | YCT250-4A-18.5 | YCT200-4B-7.5 |
Related Projects
-

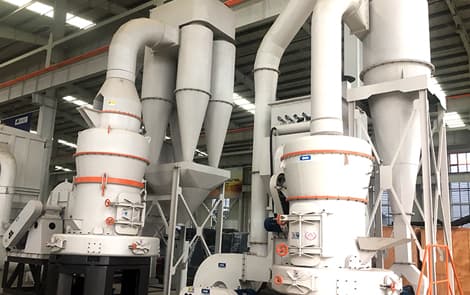

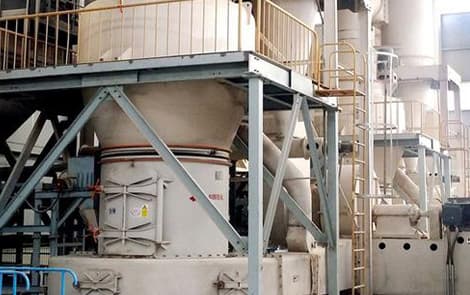

( Customers Project ) -
( Customers Project )
Sinogomine factory is the one with almost 20 years of manufacturing experience in manufacturing crushing machinery the total factory area reached 230000 square meters of which the workshop area was 112000 square meters our main products are stone crushers and briquette press machines.
-

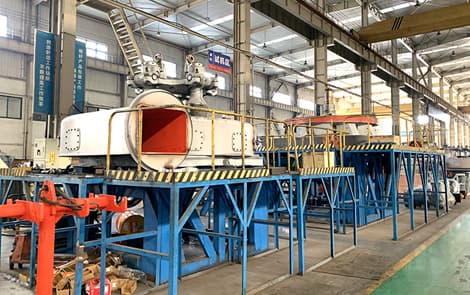

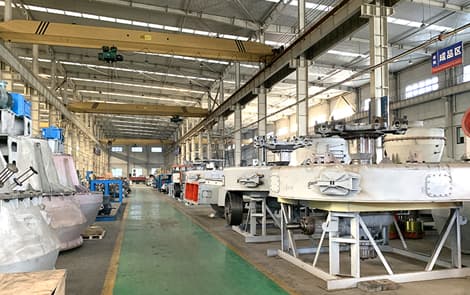

( Sinogomine Factory ) -
( Sinogomine Factory )
