Gold Mining Wet Pan Mill

  • Feed Size (mm)≤25
  • Engine power(kw): 6-30
Buyer Promotion ←         September.01-30 Expo 2023 Pay $200 as $300, Pay $300 as $500
Send Inquiry Send Email +86-18595689287
IntroductionVideoSpecificationProjects

Applied Field: Wet pan Gold Mill is a modern grinder which usually used in small and medium-sized concentrate plants. Wet pan mill grinding machine is widely used in the grinding and beneficiation of various metal minerals, non-metallic minerals, rare metals and other materials such as gold, silver, lead, zinc, molybdenum, iron, copper, antimony, tungsten, etc.

Gold Milling Wet Pan Mill Machine used for the material re-crushing after the first crushing. The capacity is 1-50 t/h. The maximum feed size is 30 mm, and the output size is 0.074-0.6 mm.


wet pan mill is particularly suitable for grinding rock gold ore, which can be ground into 100-150 mesh. Due to low cost and high production efficiency, some customers from Sudan, Egypt, and South Africa would like to purchase such gold mining machines. The most exciting thing is that you can get pure gold directly after wet grinding, thus it is quite suitable for people who want to begin a small business.


  Get A Free Quote

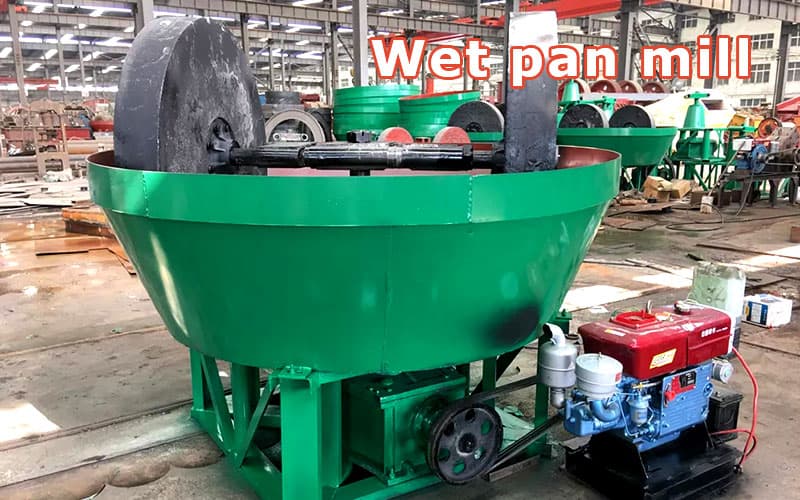

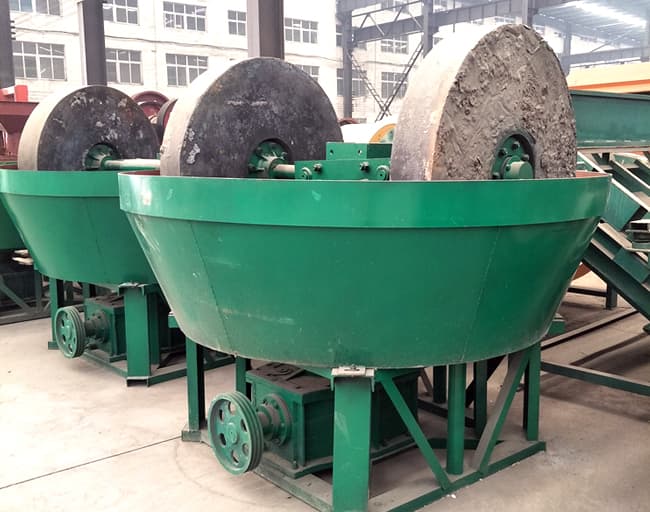

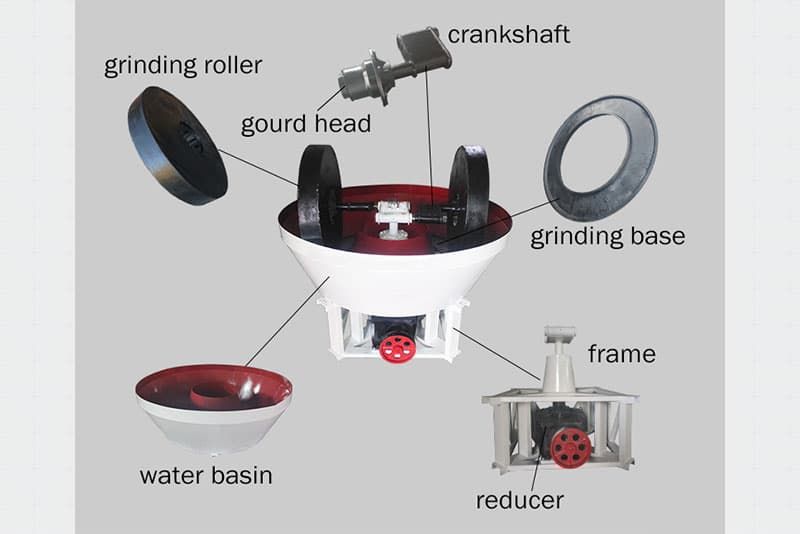

The structure of wet pan mill
The main parts of a wet pan mill are the frame, Water basin, grinding roller, crankshaft, Grinding base, Reducer, and Motor.
Grinding roller: 6% manganese alloy steel, with a service life of at least 3 years.
Ring: Made of standard 85 mm high-manganese alloy steel, which is harder and stronger than the common iron type. And the ring surface is smoother so that it can prevent the holes from absorbing the mercury and gold.
Water Basin is made of 5 mm thick steel plate, with a good welding finish, to ensure that the pan mill works smoothly. In contrast, other water basins on the market have a thickness of 3 mm, which is easy to shake.




Related Of Gold Mining Machines:

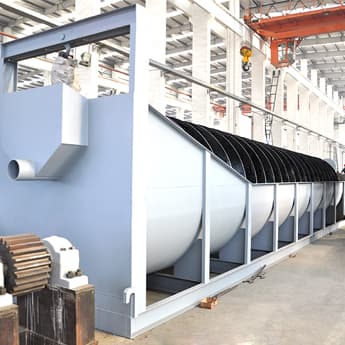

  • (Sprial classifier )

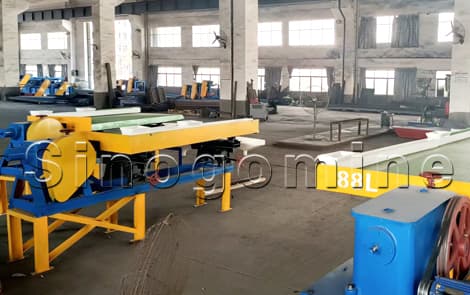

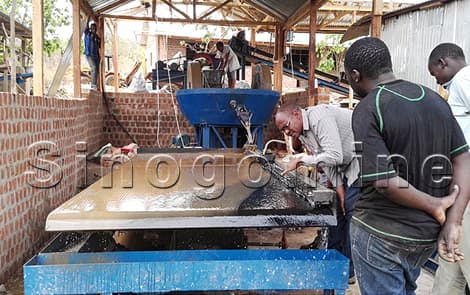

  • (Shaking table)



  Get A Free Quote

Finished Products:

Gold Recovery rate can be more than 90%. Water consumption 200-600 cubic meters per hour. Total power of the whole machine 30-60 kw. We will design the placer gold washing plant according to your situation and requires.

  •
  •


Click Here for Price
↑↑↑

Video of Gold Mining Wet Pan Mill:

Advantage

  • Wet pan mill low investment

  • High output easy use and maintenance

  • Quick cost recovery

Technical Data

Model Gauge (mm)
 		 Feed Size
 (mm)		 Engine power
(kw)		 Rotation speed
(RPM)		 Weight
(t)
1600A 1600×400×200×500±20 ≤25 6-30 20-22 14.5
1500A 1500×350×200×460±20 ≤25 6-22 20-22 13.3
1500B 1500×350×150×460±20 ≤25 6-22 20-22 12.3
1500C 1500×300×150×420±20 ≤25 6-22 20-22 11.3
1400A 1400×250×150×350±20 ≤25 6-18.5 16-18 8.5
1400B 1400×250×150×350±20 ≤25 6-18.5 21-23 8.5
1350A 1350×250×150×350±20 ≤25 6-18.5 16-18 8
1350B 1350×250×150×350±20 ≤25 6-18.5 21-23 8
1300A 1300×250×150×350±20 ≤25 6-15 16-18 7.5
1300B 1300×200×150×350±20 ≤25 4-15 21-23 7.5
1200A 1200×220×80×270±20 ≤25 6-7.5 17-19 5.5
1200B 1200×200×80×250±20 ≤25 6-7.5 23-25 5.5
1100A 1100×200×80×250±20 ≤25 6-7.5 17-19 5
1100B 1100×180×80×250±20 ≤25 4-7.5 23-25 5
1000 1000×200×80×250±20 ≤25 4-7.5 13-15 4.5

Related Projects


  • ( Customers Project in Tanzania)

  • ( Customers Project in Sudan)

  Get A Free Quote

Sinogomine factory is the one with almost 20 years of manufacturing experience in manufacturing crushing machinery the total factory area reached 230000 square meters of which the workshop area was 112000 square meters our main products are stone crushers and briquette press machines.


  • ( Sinogomine Factory )

  • (  Sinogomine Factory  )
