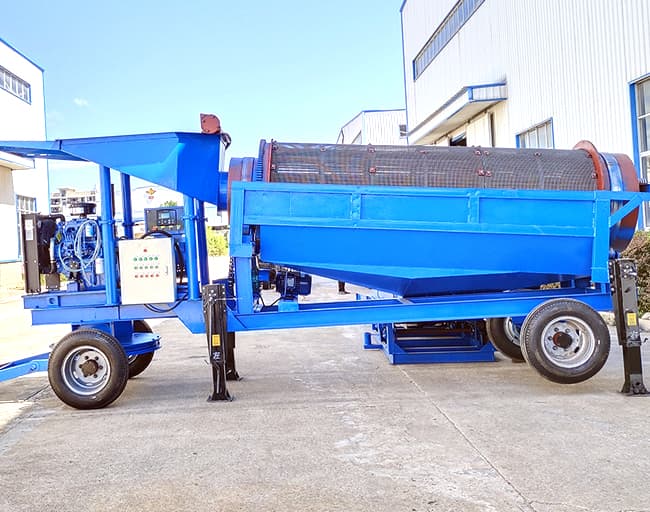

Mobile Trommel Gold Wash Plant
- Capacity(t/h): 1-200
- Motor power(kw): 11-150
The mobile gold trommel is a kind of gold equipment which can be moved on land. It has the characteristics of compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable operation, easy maintenance and convenient operation.We has been exported to Tanzania, Sudan, Africa,North Korea, Ghana etc.
1. Mobile Trommel Gold Wash Plant Working Principle:
Placer Gold Washing Plant is a kind of combined gold mining machine , designed especially for placer gold mine which is contained in the raw material, includes sieving, separating through trammel, sluice and extraction gold progress. It is with wheel type chassis, can be driven by vehicles and move easily.
Choose placer gold washing equipment can also according to the situation of ore body with fixed chute, shaking chute or centrifugal concentrator, shaking table,Amalgamator,gold furnace and so on.
2. Related Of Gold Mining Machines:
-

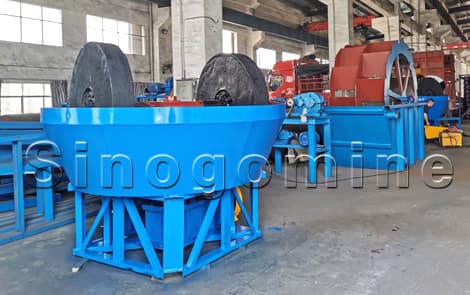

(wet Pan Gold Mill Machine >>) -
(Centrifugal Gold Concentrator)
-
(Sprial classifier ) -
(Shaking table)
3. Finished Products:
Gold Recovery rate can be more than 90%. Water consumption 200-600 cubic meters per hour. Total power of the whole machine 30-60 kw. We will design the placer gold washing plant according to your situation and requires.
Video of Mobile Trommel Gold Wash Plant:
Advantage
-
Easy to move can be dragged by loader or excavator can easily
-
Dis-assemble and assemble is convenient
-
Processing capacity 5-300 tons per hour.
Technical Data
| Model |
Trommel type (mm) |
Productivity (t/h) |
Motor power (kw) |
Dimensions （mm） |
Sluice box Size （length*width）(mm) |
Centrifugal Concentrator |
| GTS10 | 800×1500 | 5-10 | 11 | 2500×1000 | 2000×500 |
Centrifugal Concentrator SLT 30 Capacity 5T/H Centrifugal Concentrator SLT 40 Capacity 10T/H Centrifugal Concentrator SLT 60 Capacity 20T/H Centrifugal Concentrator SLT 80 Capacity 35T/H Centrifugal Concentrator SLT 100 Ccity 75T/H |
| GTS30 | 1200×2500 | 30 | 35 | 5000×1400 | 3000×1000 | |
| GTS50 | 1500×3000 | 50 | 50 | 6500×1800 | 4500×1000 | |
| GTS100 | 1500×4500 | 100 | 100 | 8300×2200 | 6000×1000 | |
| GTS150 | 1600×4800 | 150 | 120 | 9200×2200 | 2×（6000×1000） | |
| GTS200 | 1800×5000 | 200 | 150 | 11500×2250 | 2×（6000×1000） |
Related Projects
-

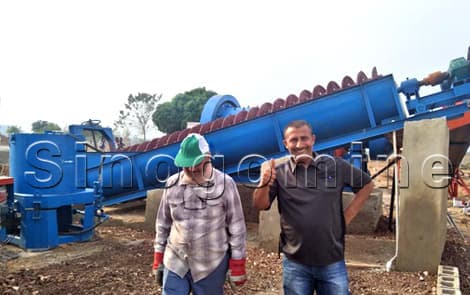

( Customers Project in Tanzania) -
( Customers Project in Sudan)
Sinogomine factory is the one with almost 20 years of manufacturing experience in manufacturing crushing machinery the total factory area reached 230000 square meters of which the workshop area was 112000 square meters our main products are stone crushers and briquette press machines.
-

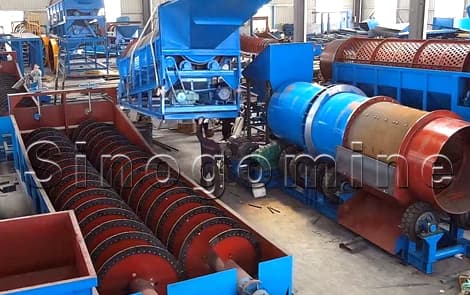

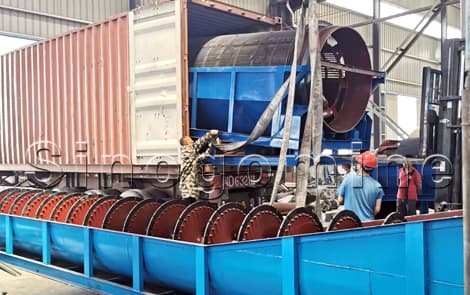

( Sinogomine Factory ) -
( Sinogomine Factory )
