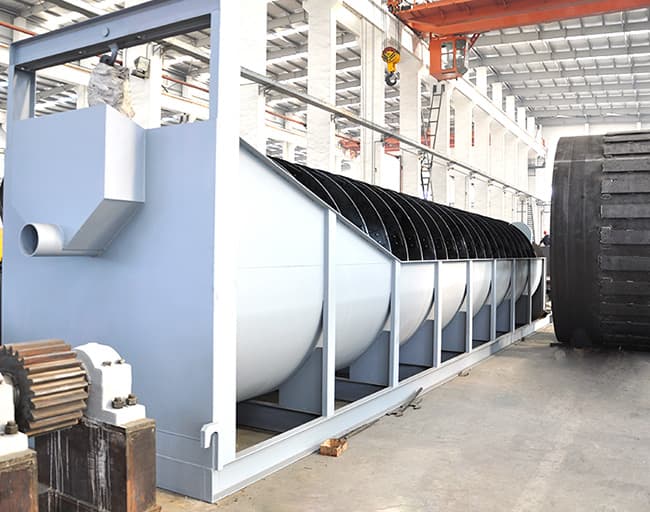

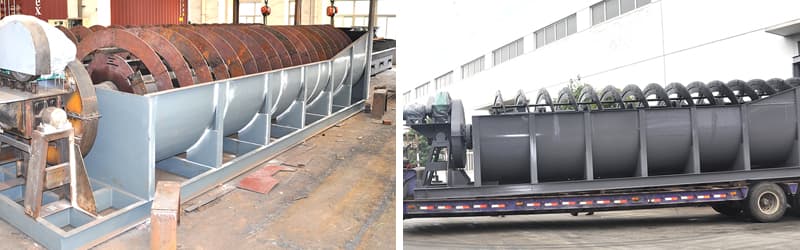

Sprial classifier
- Capacity(t/h): 135-1080
- Weight（kg）: 1980-6000
Our company independently manufactures this new generation series of the classifier, which synthesizes similar classification technology from Germany and Japan. At present it has reached the international advanced level of the same products.
High weir type : the top of the spiral vane is above the overflow surface, and the spiral center is under the overflow, mainly applied in classifying the size between 0.83-0.15mm.
Immersed type: the spiral vane all immersed under overflow surface, mainly applied in classifying the size between 0.15-0.07.
Video of Sprial classifier:
Advantage
-
Large output low energy consumption high classifying efficiency.
-
The granularity is concentrative distribution high classification precision.
-
Rational structure fine applicability and high degree of automation.
Technical Data
| Type | Model |
Screw dia. （mm） |
Trough length （mm） |
Rotary speed（r/min） | Capacity（t/d） |
Trough angle （°） |
Screw weight （t） |
Motor power（kw） |
Overall dimension (L×W×H) （mm） |
Weight（kg） |
||
|
Sand return |
Overflow | Drive | Raise | |||||||||
| High-weir type | FG500 | Φ500 | 4500 | 8～12.5 | 135～210 | 32 | 14-18.5 | 0.75 | 1.5 | 6409×712×1599 | 1980 | |
| FG750 | Φ750 | 5500 | 6.0-10.0 | 340～570 | 65 | 14-18.5 | 1.1 | 3.0 | 6300×1250×1780 | 3005 | ||
| FG-1000 | Φ1000 | 6500 | 5.0～8.0 | 675～1080 | 110 | 14-18.5 | 1.9 | 7.5 | 7100×1330×2390 | 5310 | ||
| FG-1200 | Φ1200 | 6500 | 5.0～8.0 | 1170～1870 | 155 | 14-18.5 | 3.7 | 7.5 | 0.4 | 7560×1572×2328 | 8000 | |
| FG-1500 | Φ1500 | 8300 | 4.0～6.0 | 1830～2740 | 235 | 14-18.5 | 5.1 | 11 | 0.4 | 9740×2000×4100 | 9800 | |
| FG-2000 | Φ2000 | 8400 | 3.0～3.5 | 3240～5400 | 400 | 14-18.5 | 7.1 | 11 | 2.8 | 10000×2570×4468 | 20500 | |
| FG-2400 | Φ2400 | 9200 | 2.5～4.0 | 4650～7450 | 580 | 14-18.5 | 10.2 | 11-15 | 2.8 | 10800×2980×4700 | 25700 | |
| 2FG-1200 | Φ1200 | 6500 | 5.0～8.0 | 2340～3740 | 310 | 14-18.5 | 3.7×2 | 5.5×2 | 0.4×2 | 8060×3400×3100 | 13300 | |
| 2FG-1500 | Φ1500 | 8300 | 4.0～6.0 | 3660～5480 | 470 | 14-18.5 | 5.1×2 | 7.5×2 | 0.4×2 | 9740×3630×4050 | 22100 | |
| 2FG-2000 | Φ2000 | 8400 | 3.0～5.5 | 6480～10800 | 800 | 14-18.5 | 7.1×2 | 11×2 | 2.8×2 | 10000×4600×4470 | 36500 | |
| 2FG-2400 | Φ2400 | 9200 | 2.5～4.0 | 9300-14900 | 1160 | 14-18.5 | 10.2×2 | 15×2 | 2.8×2 | 10800×5400×4700 | 45800 | |
| 2FG-3000 | Φ3000 | 12500 | 2.0～3.2 | 14600～23400 | 1785 | 14-18.5 | 20×2 | 18.5×2 | 4×2 | 15600×6640×6350 | 73000 | |
| Immersed type: | FC-1000 | Φ1000 | 7600 | 5.0～8.0 | 675～1080 | 85 | 14-18.5 | 2.4 | 7.5 | 0.4 | 10000×1680×4000 | 6000 |
| FC-1200 | Φ1200 | 8400 | 5.0～8.0 | 1170～1870 | 120 | 14-18.5 | 4.8 | 7.5 | 0.4 | 10000×1880×4190 | 9280 | |
| FC-1500 | Φ1500 | 10500 | 4.0～6.0 | 1830～2740 | 185 | 14-18.5 | 6.4 | 11 | 0.8 | 12200×2100×4900 | 12570 | |
| FC-2000 | Φ2000 | 12900 | 3.0～3.5 | 3240～5940 | 320 | 14-18.5 | 8.6 | 11-15 | 2.8 | 14500×2880×5500 | 29100 | |
| FC-2400 | Φ2400 | 14200 | 2.5～4.0 | 4650～7450 | 455 | 14-18.5 | 12.8 | 11-18.5 | 4.0 | 15900×3300×6000 | 41000 | |
| 2FC-1200 | Φ1200 | 8400 | 5.0～8.0 | 2340～3740 | 240 | 14-18.5 | 4.8×2 | 7.5×2 | 0.4×2 | 10000×3700×4190 | 19600 | |
| 2FC-1500 | Φ1500 | 10500 | 4.0～6.0 | 3660～5480 | 370 | 14-18.5 | 6.4×2 | 7.5×2 | 0.8×2 | 12200×3840×4850 | 30700 | |
| 2FC-2000 | Φ2000 | 12900 | 3.0～5.5 | 6480～11800 | 640 | 14-18.5 | 8.6×2 | 15×2 | 2.8×2 | 14500×4910×5500 | 50000 | |
| 2FC-2400 | Φ2400 | 14200 | 2.5～4 | 9300～14900 | 910 | 14-18.5 | 12.8×2 | 18.5×2 | 4×2 | 15900×5730×6000 | 67900 | |
| 2FC-3000 | Φ3000 | 14300 | 2.0～3.2 | 14600～23400 | 1410 | 14-18.5 | 24.1×2 | 22×2 | 4×2 | 17700×7000×8000 | 84900 | |
