Rotary Dryer

Volume（m³）: 9-285
Capacity(t/h): 1.9-76

Buyer Promotion ← September.01-30 Expo 2023 Pay $200 as $300, Pay $300 as $500

Send Inquiry Send Email +86-18595689287

Introduction Video Specification Projects

Rotary drum dryers are mainly used for the drying of particles and powders in the chemical, metallurgy, building materials, mining and other industries.

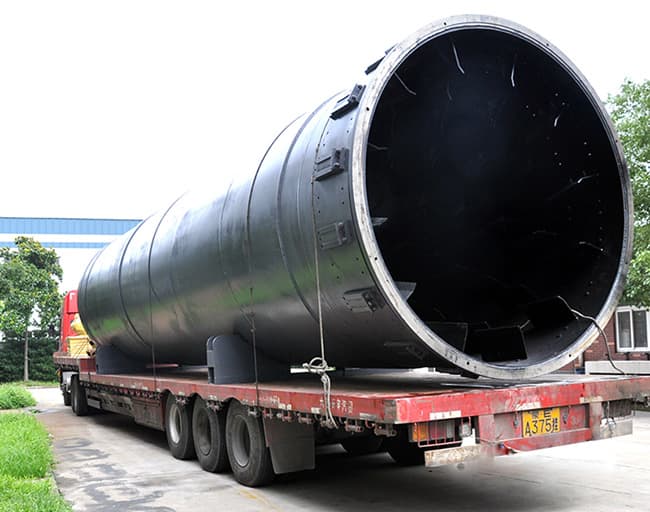

(Rotary Dryer)

Video of Rotary Dryer:

Advantage

High drying strength and high efficiency
Simple operation environmental protection and energy saving
Advanced structure strong drying capacitye

Technical Data

Model（m）	Volume	Processing capacity	Installation Obliquity	Highest Inlet Air Temperature	Motor power	Weight
Model（m）	（m³）	（t/h）	（%）	（℃）	（kw）	（t）
Φ1.2×8.0	9	1.9-2.4	3~5	700-800	7.5	9
Φ1.2×10	11.3	2.4-3.0	3~5	700-800	7.5	11
Φ1.5×12	21.2	4.5-5.7	3~5	700-800	15	18.5
Φ1.5×14	24.7	5.3-6.6	3~5	700-800	15	19.7
Φ1.5×15	26.5	5.7-7.1	3~5	700-800	15	20.5
Φ1.8×12	30.5	6.5-8.1	3~5	700-800	18.5	21.5
Φ1.8×14	35.6	7.6-9.5	3~5	700-800	18.5	23
Φ2.2×12	45.6	9.7-12.2	3~5	700-800	22	33.5
Φ2.2×14	53.2	11.4-14.2	3~5	700-800	22	36
Φ2.2×16	60.8	13.0-16.2	3~5	700-800	22	38
Φ2.4×14	63.3	13.5-16.9	3~5	700-800	37	45
Φ2.4×18	81.4	17.4-21.7	3~5	700-800	37	49
Φ2.4×20	90.4	19.3-24.1	3~5	700-800	45	54
Φ2.4×22	99.5	21.2-26.5	3~5	700-800	45	58
Φ2.6×24	127.4	27.2-34.0	3~5	700-800	55	73
Φ3.0×20	141.3	30.1-37.7	3~5	700-800	75	85
Φ3.0×25	176.6	37.7-47.1	3~5	700-800	75	95
Φ3.2×25	201	42.9-53.6	3~5	700-800	90	110
Φ3.6×28	285	60.8-76.0	3~5	700-800	160	135
