Home > Products > Grinding Equipment >

Micro Powder Mill

  • Size of finished product（mm）: 0.106-0.004
  • Feeding size（mm）: ≤25
Buyer Promotion ←         September.01-30 Expo 2023 Pay $200 as $300, Pay $300 as $500
Send Inquiry Send Email +86-18595689287
IntroductionVideoSpecificationProjects

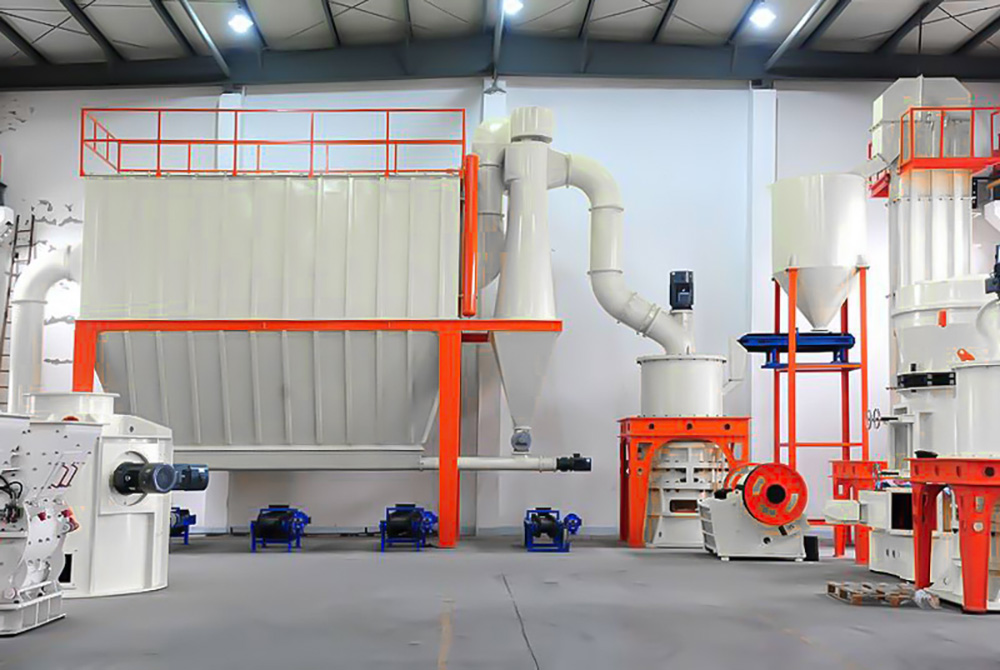

The micro powder mill is mainly composed of the main machine, a blower, an ultra-fine analyzer, a cyclone powder collector, a bag-type dust collector, and a connecting pipe. According to the needs of users, it can be equipped with some auxiliary equipment, such as the bucket elevator, storage silo, electric control cabinet, powder feeder, crusher, etc.

(what matrials can be processed)

This micro powder mill is suitable for the super-fine crushing of all kinds of crisp materials whose Mohs hardness is below 9.3, such as calcium carbonate, barite, kaolin, rare earth ore, hematite, talc, feldspar, and furnace slag.



(Structure Raymond mill plant)

Video of Micro Powder Mill:

Advantage

  • The micro powder mill is much cheaper than the airflow mill

  • It takes only one-third energy of that of the airflow mill

  • It has a big feeding size and the particle size of the final product can reach 6.5um


Technical Data

Model HGM60 HGM80 HGM100 HGM125
No.of Roller and Ring No.of Roller (pcs) 12 21 28 32
No.of Ring (pcs) 3 3 4 4
The Feeding Size(mm) 20
Capacity(t/y) 0.2-3 0.5-4.5 1-8.5 1.5-18
The Final Size Micron(μm) 106-4.1
Mesh (150-3000)
Motor Power (KW) Main Mill 45 75 132 200
Classifier 15 18.5 30 75
Air Blower 37 45 75 132
Screw Conveyer 2.2 3 4 4
Discharge Valve 0.75 0.75 1.1 1.5
Air Compressor 7.5 11 15 37
Overall Dimension (Length x Width x Height)(M) 11.5x3.5x5.2 15.9x4.2x6.1 19.7x4.7x7.7 23.2x4.7x7.7

Related Projects

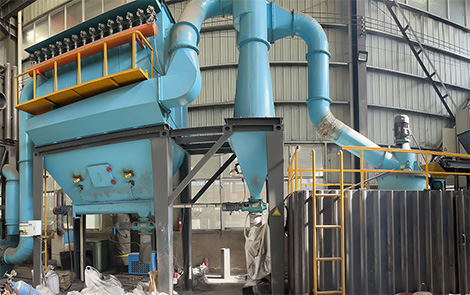

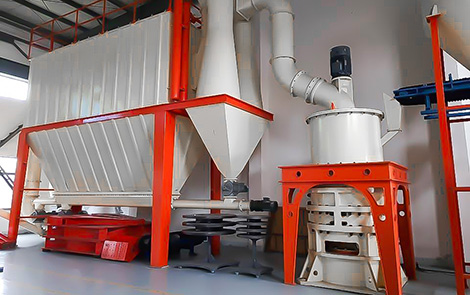

  • ( Customers Project )

  • ( Customers Project )

Sinogomine factory is the one with almost 20 years of manufacturing experience in manufacturing crushing machinery the total factory area reached 230000 square meters of which the workshop area was 112000 square meters our main products are stone crushers and briquette press machines.

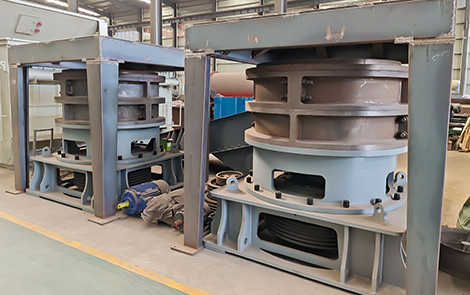

  • ( Sinogomine Factory )

  • ( Sinogomine Factory )


Quick Way To Get Price And Support

Email: sales@sinogomine.com

Please feel free to fill in the following form or send us an email, Provide customized solution according to your specific needs.

(Due to the different capacity and transportation costs of various equipment, the final price of the equipment will vary..)
