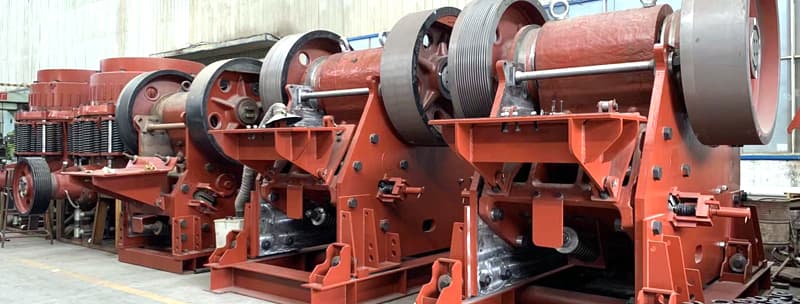

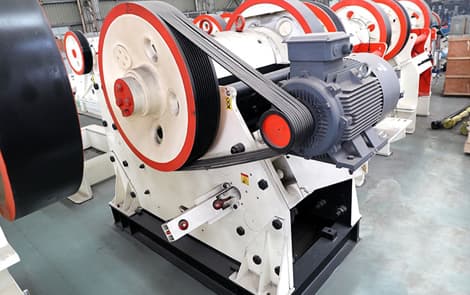

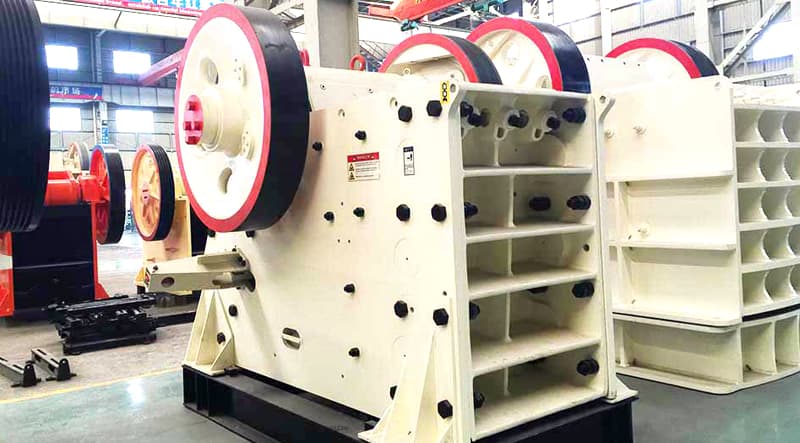

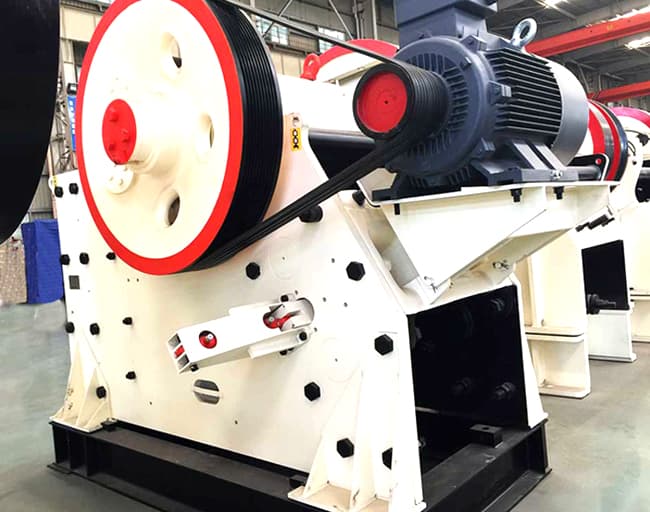

CJ-Series Jaw Crusher
- Feeding Size:480-1040mm
- Capacity: 120-1160t/h
1. CJ series jaw crusher Application :
CJ series jaw crusher is widely used to process granite, limestone, rock, boulder, andesite, basalt and over 120 kinds of stones and ores in mining, quarry, construction and other industries. It is particularly suitable for stationary crushing lines and mobile crushing plants.
CJ Jaw crusher is a kind of jaw crusher with excellent performance produced. Compared with the traditional jaw crusher, there are significant advances in the motion parameters, structural forms, and adjustment methods of the crusher.
2. Type of jaw crusher:
As ideal primary or secondary crusher equipment, jaw crushers with different types are often used in various industries. Depending on different ways of moving or engine, jaw crushers are divided into : CJ/PE/PEX Motor jaw crusher, Diesel jaw crusher, and Mobile jaw crusher.
-
(CJ Jaw Crusher) -
(PE Jaw Crusher >>)
Mobile crushing solutions are also available! You just need to tell our engineer your demand, and we will equip you the right mobile crushers with low energy consumption, low cost, and high efficiency.
Video of CJ-Series Jaw Crusher:
Advantage
-
① Non-welded but detachable fr
ame more solid and reliable. It is also convenient for transportation and installation. -
② Super-large bearing steel plate elbow integrated steel fr
ame ba se and other features make it much reliable and efficient. -
③ Optimized adjustment method reduces the labor intensity.
Technical Data
| Model | Feeding Opening Width (mm) | Feeding Opening Depth (mm) |
Rotate Speed (rpm) |
Output Size(mm) |
Capacity (t/h) |
Power (kw) |
Weight (kg) |
| CJ96 | 930 | 580 | 330 | 60-175 | 120-430 | 90 | 11353 |
| CJ106 | 1100 | 630 | 280 | 70-200 | 150-580 | 110 | 18700 |
| CJ110 | 1100 | 850 | 230 | 70-200 | 190-620 | 132 | 26150 |
| CJ125 | 1250 | 950 | 220 | 100-250 | 290-830 | 160 | 39239 |
| CJ160 | 1600 | 1200 | 220 | 150-300 | 520-1200 | 250 |
79993 |
Related Projects
Sinogomine factory is the one with almost 20 years of manufacturing experience in manufacturing crushing machinery the total factory area reached 230000 square meters of which the workshop area was 112000 square meters our main products are stone crushers and briquette press machines.
-
