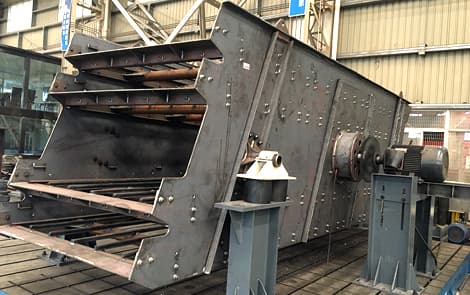

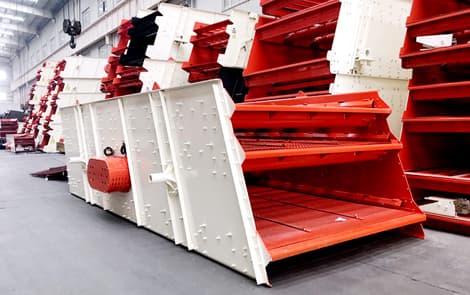

Vibrating Screen
- Capacity(t/h): 60-1300
- Feeding Size (mm): 200-400
YK series vibrating screens are equipment for size classification of aggregates, which are widely used in mining, building materials, transportation, energy, chemical and other industries.

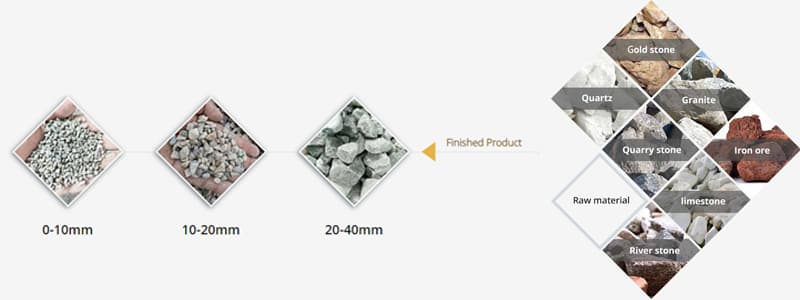

It is widely used for screening of granite, river stone, quarry stone, rock, boulder, gravel, aggregate, basalt, limestone, gold ore, iron ore, chrome ore, etc. Adjustable final size meeting different needs. Following is common final output size.
Video of Vibrating Screen:
Advantage
-
Simple structure convenient and quick maintenance simple operation
-
Fittings have good toughness and high flexibility
-
Long life low power consumption and low noise
Technical Data
| Model |
la |
Size of sieve pore(mm) | Max. Feeding size (mm) | Capacity (m3/h) | Double amplitude (mm) | Model of motor | Power (kw) | Screen size (mm) |
| 2YS1237 | 2 | 3-50 | 300 | 10-80 | 6-8 | Y160M-4 | 11 | 1200X3700 |
| 3YS1237 | 3 | 3-50 | 300 | 10-80 | 8 | Y160M-4 | 11 | 1200X3700 |
| 4YS1237 | 4 | 3-50 | 300 | 10-80 | 8 | Y160M-4 | 11 | 1200X3700 |
| 2YS1548 | 2 | 3-100 | 300 | 22-160 | 8 | Y160L-4 | 15 | 1500X4800 |
| 3YS1548 | 3 | 3-100 | 300 | 22-160 | 8 | Y160L-4 | 15 | 1500X4800 |
| 4YS1548 | 4 | 3-100 | 300 | 22-160 | 8 | V160L-4 | 15 | 1500X4800 |
| 2YS1848 | 2 | 3-100 | 300 | 32-276 | 8 | Y180M-4 | 18.5 | 1800X4800 |
| 3YS1848 | 3 | 3-100 | 300 | 32-276 | 8 | Y180M-4 | 1&5 | 1800X4800 |
| 4YS1848 | 4 | 3-100 | 300 | 32-276 | 8 | Y180M-4 | 18.5 | 1800X4800 |
| 2YS1860 | 2 | 3-100 | 300 | 65-586 | 8 | Y180M-4 | 22 | 1800X6000 |
| 3YS1860 | 3 | 3-100 | 300 | 65-586 | 8 | Y180M-4 | 22 | 1800X6000 |
| 4YS1860 | 4 | 3-100 | 300 | 65-586 | 8 | Y180M-4 | 22 | 1800X6000 |
| 2YS2160 | 2 | 3-100 | 300 | 81-720 | 8 | Y200L-4 | 30 | 2100X6000 |
| 3YS2160 | 3 | 3-100 | 300 | 81-720 | 8 | Y200L-4 | 30 | 2100X6000 |
| 4YS2160 | 4 | 3-100 | 300 | 81-720 | 8 | Y200L-4 | 37 | 2100X6000 |
| 2YS2460 | 2 | 3-150 | 300 | 90-810 | 8 | Y225S-4 | 37 | 2400X6000 |
| 3YS2460 | 3 | 3-150 | 300 | 90-810 | 8 | Y225S-4 | 37 | 2400X6000 |
