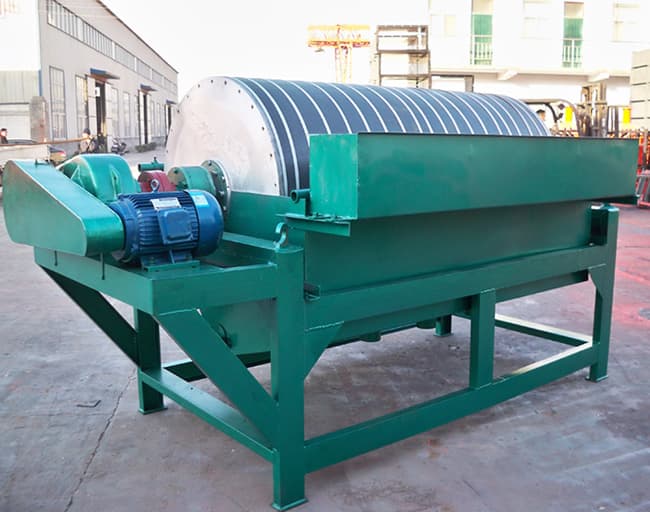

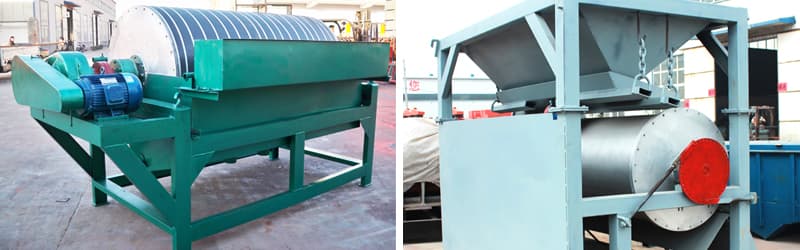

Magnetic separator
- Capacity(t/h): 10-260
- Power(kw): 1.5-11
It mainly consists of magnetic , drum, separation trough, gearing, and feeding , discharging ,and overflowing device.
It utilizes the different specific susceptibility of various minerals, and separates the magnetic substances in mixture, with the help of magnetic force and mechanical force. This is a new mine selection machine which is developed in the recent 20 years, mainly used in thin grade ferromagnetism mineral dry and wet separating.
Video of Magnetic separator:
Advantage
-
High capacity.
-
Easy operation.
-
Simple structure.
Technical Data
| Model |
Cylinder dia. (mm) |
Cylinder length (mm) |
Rotary speed of cylinder (r/min) |
Capacity (t/h) |
Feeding size (mm) |
Power (kw) |
Weight (kg) |
|
CTB612 CTS612 |
600 | 1200 | ﹤35 | 10~20 | 2~0 | 1.5 | 1445 |
|
CTB618 CTS618 |
600 | 1800 | ﹤35 | 15~30 | 2~0 | 2.2 | 1655 |
|
CTB718 CTS718 |
750 | 1800 | ﹤35 | 20~45 | 2~0 | 2..2 | 1992 |
|
CTB918 CTS918 |
900 | 1800 | ﹤35 | 40~60 | 3~0 | 3 | 3162 |
|
CTB924 CTS924 |
900 | 2400 | ﹤28 | 45-70 | 3~0 | 4 | 3887 |
|
CTB1024 CTS1024 |
1050 | 2400 | ﹤20 | 60-120 | 3~0 | 5.5 | 4319 |
|
CTB1218 CTS1218 |
1200 | 1800 | ﹤18 | 80-140 | 3~0 | 5.5 | 5263 |
|
CTB1230 CTS1230 |
1200 | 3000 | ﹤18 | 100-180 | 3~0 | 7.5 | 6325 |
|
CTB 1530 CTS1530 |
1500 | 3000 | ﹤16 | 150-260 | 3-0 | 11 | 9500 |
(Main Technical Parameters):
| Model | Cylinder |
Cylinder length (mm) |
Rotary speed of cylinder (r/min) |
Capacity t/h |
Feeding size (mm) |
Power (kw) |
Weight (kg) |
|
CTB612 CTS612 |
600 | 1200 | ﹤35 | 10~20 | 2~0 | 1.5 | 1445 |
|
CTB618 CTS618 |
600 | 1800 | ﹤35 | 15~30 | 2~0 | 2.2 | 1655 |
|
CTB718 CTS718 |
750 | 1800 | ﹤35 | 20~45 | 2~0 | 2..2 | 1992 |
|
CTB918 CTS918 |
900 | 1800 | ﹤35 | 40~60 | 3~0 | 3 | 3162 |
|
CTB921 CTS921 |
900 | 2100 | ﹤35 | 45~60 | 3~0 | 3 | 3475 |
|
CTB924 CTS924 |
900 | 2400 | ﹤28 | 45-70 | 3~0 | 4 | 3887 |
|
CTB1018 CTS1018 |
1050 | 1800 | ﹤20 | 50-75 | 3~0 | 5.5 | 3801 |
|
CTB1021 CTS1021 |
1050 | 2100 | ﹤20 | 50-100 | 3~0 | 5.5 | 4095 |
|
CTB1024 CTS1024 |
1050 | 2400 | ﹤20 | 60-120 | 3~0 | 5.5 | 4319 |
|
CTB1218 CTS1218 |
1200 | 1800 | ﹤18 | 80-140 | 3~0 | 5.5 | 5263 |
|
CTB1224 CTS1224 |
1200 | 2400 | ﹤18 | 85-180 | 3~0 | 7.5 | 5927 |
|
CTB1230 CTS1230 |
1200 | 3000 | ﹤18 | 100-180 | 3~0 | 7.5 | 6325 |

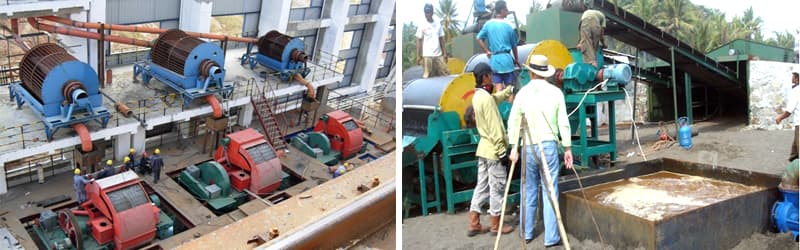

Related Projects
