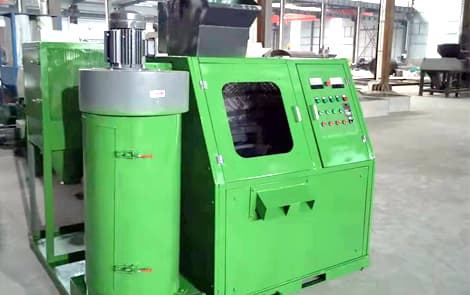

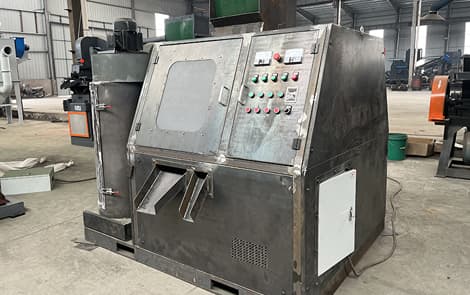

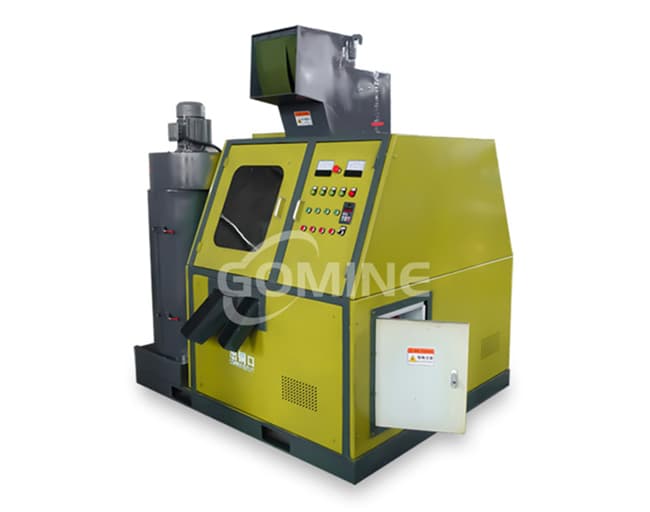

GMC400 Copper Wire Recycling Machine

  • Input size: 0.1-30mm
  • Capacity: 100-200kg/h
Buyer Promotion ←         September.01-30 Expo 2023 Pay $200 as $300, Pay $300 as $500
Send Inquiry Send Email +86-18595689287

Integrated copper wire granulator is used for recycling automotive wires, communication cables and other types of miscellaneous wires and cables. The diameter of feeding scrap cables can below 30mm. For single conductor with diameter of 0.3-20mm, the machine performs best. This copper wire recycling machine is suitable for homemade and small scale recycling business.



(scrap-cables)

Working Process:

1. Feeding:

The granulator starts with scrap copper wire, almost all of which will be insulated. When you’re dealing in high volume scrap wires, you can trust the granulator to do the work. You’ll simply feed the wiring, insulation and all, into the granulator. Using a belt conveyor to feed will make it much more efficient.

2. Shredding:

Once scrap wires or cables are fed in, the cable granulator will get to work. Scrap cables will be chopped into plastic pieces and copper granules.

3. Separation:

Now comes the work of separating the valuable copper from the plastic waste. This is an important step, with bad quality machines, recyclers could lose nearly 15 percent of their copper to being incorrectly sorted as waste. That’s tantamount to throwing money away. But no worries, the copper recycling rate of our copper wire granulator machine is no less than 99%, which can guarantee the quality of copper.



(copper-and-plastic-granules)

This copper wire recycling machine is dry type, after air and vibration separation, copper granules come out of the front outlet and plastics out of the back outlet. Dust is sent to dust collector via air duct.

Video of GMC400 Copper Wire Recycling Machine:

Advantage

This copper wire granulator adopt one-piece structure design which makes it small occupied area easy to use and move. It can works as soon as the power on on the flat ground.

Integrated structure small dimensions easy to move saving space.

Low power consumption stable performance.

Minimum copper recycling rate can reach 99%. If you want to further sorting our electrostatic separator can be further sorted.

No water is needed no dust no environmental pollution.

Controlled by electricity control panel highly automatic.

The voltage can be customized as per your requirements.

Technical Data

Model Dimension (mm) Crusher (kw) Air conveying (kw) Wind sorting (kw) Dust Collection (kw) Output (kg/h) Weight(kg)
GMC-400 2000*1850*2600 15 N/A 0.75+22 0.75 100-150 1800
GMC-600 4200*1900*3800 37 3 3.75 2.2 300-400 3500
GMC-1000 5180*2100*4200 45 4 3.75 3 800-1000 4600
