Ceramic Ball Mill

  • Effective volume :0.68-24.3 m³
  • Production capacity :0.2-8 t/h
Buyer Promotion ←         September.01-30 Expo 2023 Pay $200 as $300, Pay $300 as $500
Send Inquiry Send Email +86-18595689287

⌈ Application range ⌋:Widely used in cement, silicate products, new building materials, refractory materials, fertilizers, black and non-ferrous metal dressing and glass ceramics and other production industries.

⌈ Applicable material ⌋:Used for fine grinding of raw materials such as feldspar, quartz, clay, ore.

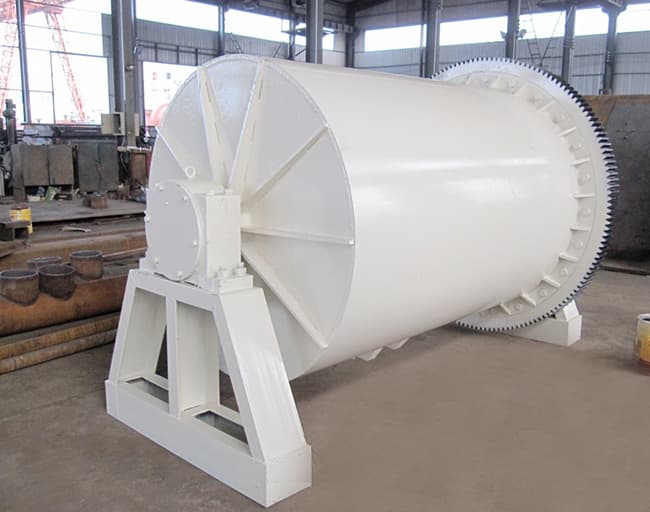

(Ceramic Ball Mill)


The ceramic-type batch ball mill is a small non-continuously produced ball mill. The utility model has the advantages of simple structure, convenient operation, less auxiliary equipment, and high-definition products can be obtained at one time. The fineness of the product is generally 800 mesh or more, even 2000 to 3000 mesh, and the fineness is easy to control. The use of ceramic lining, high-aluminum ceramic grinding media, can reduce energy consumption and avoid iron pollution. It is applied to small production lines with high product fineness and can not be polluted by iron.


The working principle of ceramic ball mill is the same as the principle of other ball mills:


(Working principle)

Video of Ceramic Ball Mill:

Advantage

  • Less investment energy saving.

  • Novel structure and easy operation.

  • Safe to use stable performance.

Technical Data

Model

Volume(m³)

Maximum loading(t)

Capacity(t/h)

Rotational speed(r/min)

Motor power(kw)

Weight(t)

TCQ910×1120

0.68

0.22

0.2

36

5.5-11

3

TCQ1200×1400

1.5

0.5

0.5

32

11-18.5

3.8

TCQ1500×1800

3

1.0

1

28

15-22

4.5

TCQ1800×2100

5

1.65

1.5

26

18.5-30

6

TCQ2100×2100

6.8

2.2

2.5

22

22-37

7.4

TCQ2200×2400

8.5

2.8

3

20

28-45

8.2

TCQ2500×2900

13.2

4.4

5

16

37-55

9.3

TCQ2800×3700

21.2

7.0

8

14.5

55-75

12.5

TCQ3000×3700

24.3

8.0

10

14

75-90

18.6


Related Projects

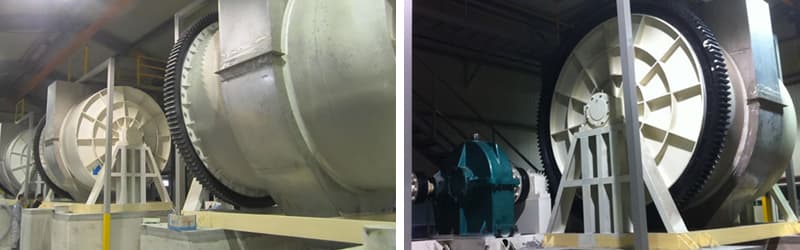

(Customers Vistor)
