Small Mobile Diesel Jaw Crusher
- Capacity (t/h): <20
- Weight (kg): 920-1650

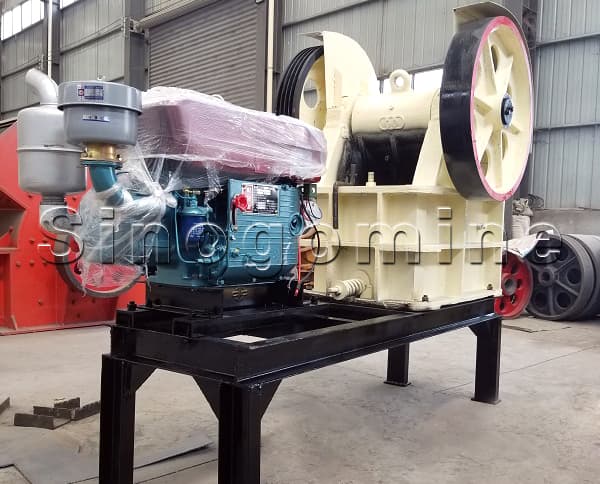

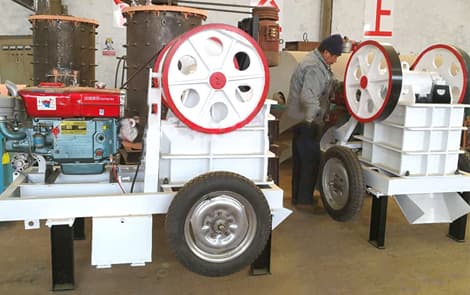

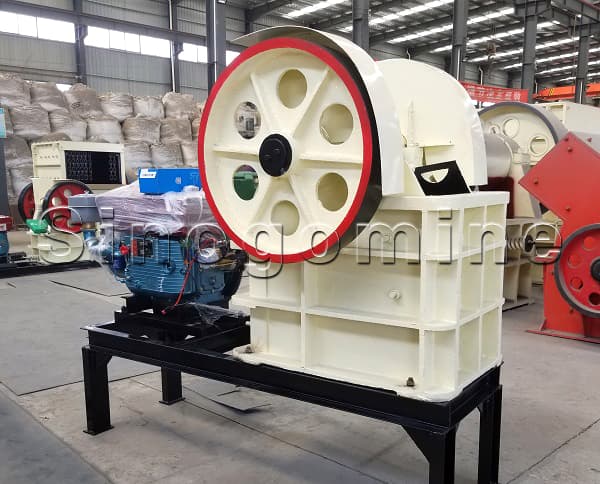

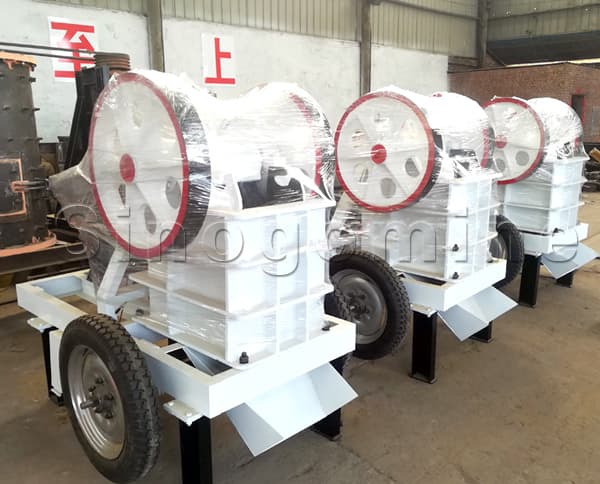

Mobile Diesel Engine Jaw Crusher is mainly used in places that donnot have enough electricity or without electricity. Also this kind of diesel engine jaw crusher can move anywhere you want.It can crush many kinds of stone from 200mm into 20mm.
Mobile Diesel Engine Jaw Crusher Working Principle
Diesel Engine jaw crusher is powered by diesel engine, then belt pully will be driven, transmit to fixed and movable jaw, when the angle between fixed and movable jaw become smaller, stones will be crushed.
Advantage
1. It is set on a fr
2. It is of compact structure simple operation high crushing ratio and is very popular among small mining plant worldwide.
3. With Mn plates strong supporting legs and wearable wheels it is of long service life and helps save maintenace cost;
4. It often matches the wet pan mill in gold process project;It help crush big size stones to small size stones which is easy for the milling process;
Technical Data
| Model | Feeding Size (mm) | Discharging Size (mm) | Capacity (t/h) | Power for Diesel engine (kw) | Weight (kg) | Overall Dimension (mm) |
| PE150250 | <125 | 10-40 | 1-3 | 5.5 | 920 | 1836x1030x1408 |
| PE250400 | <200 | 20-50 | 5-20 | 15 | 3150 | 2805x1210x1860 |
| PC400300 | <70 | <12 | <8 | 11 | 960 | 2210x1195x1360 |
| PC400600 | <100 | <15 | <15 | 18.5 | 1650 | 2612x1205x1670 |
Related Projects
-

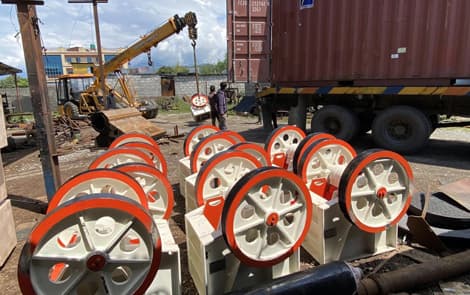

(Customer Project) -
(Customer Project)

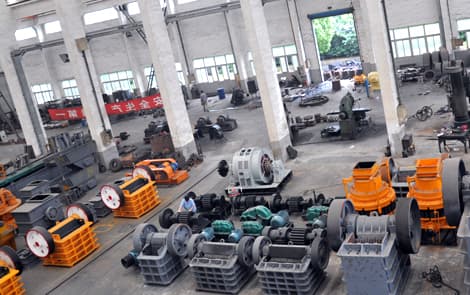

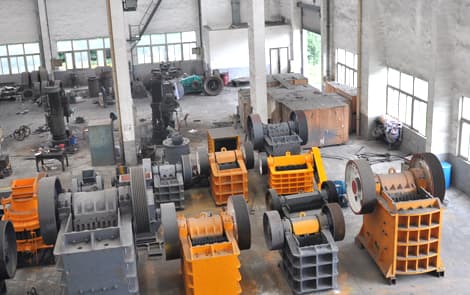

Sinogomine factory is the one with almost 20 years of manufacturing experience in manufacturing crushing machinery the total factory area reached 230000 square meters of which the workshop area was 112000 square meters our main products are stone crushers and briquette press machines.
-
(Sinogomine Factory) -
(Sinogomine Factory)
