Carbonization Furnace

  • Output capacity: 2500-3000kg
  • Temperature(℃): 600-800
Buyer Promotion ←         September.01-30 Expo 2023 Pay $200 as $300, Pay $300 as $500
Send Inquiry Send Email +86-18595689287

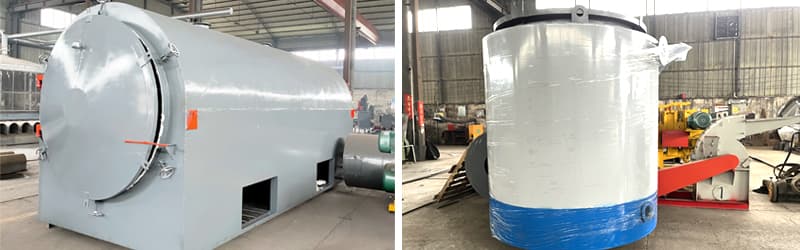

We have Horizontal Carbonization Furnace and Horizontal Carbonization Furnace.

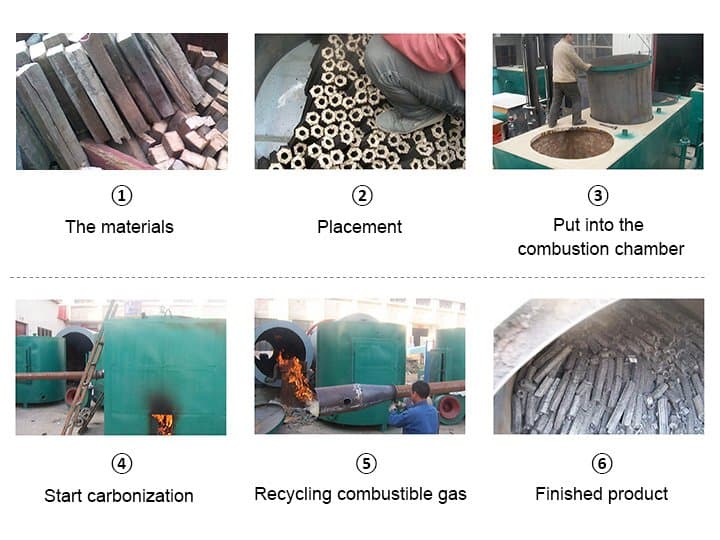

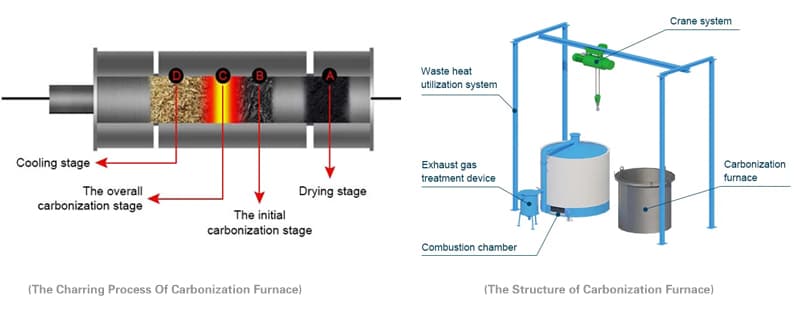

The carbonization furnace is a kind of equipment that can carry out dry distillation and anaerobic carbonization of wood materials containing carbon under high-temperature conditions in the furnace. During the carbonization of the material, a large number of combustible gases such as carbon monoxide, methane, and oxygen will be produced. Our carbonization furnace adopts advanced technology to recover, purify, and cyclically burn these combustible gases.

This technology solves the problems of environmental pollution and heat energy required in the process of carbonization of ordinary carbonization furnaces. The carbonized material has the advantages of high calorific value, no smoke during combustion, no explosion, and environmental protection. Our carbonization furnace has the advantages of reasonable structure, energy saving, fast cooling speed, good charcoal quality, and a short production cycle. It is an ideal equipment for the carbonization of wood materials.


↑↑↑

Advantage

  • Use the heat generated by itself to burn itself to achieve the effect of energy-saving.

  • The flue gas is purified in the pipeline no waste is generated during the production process

  • The carbonization furnace and combustion chamber adopt a split design can realize continuous operation.

Technical Data

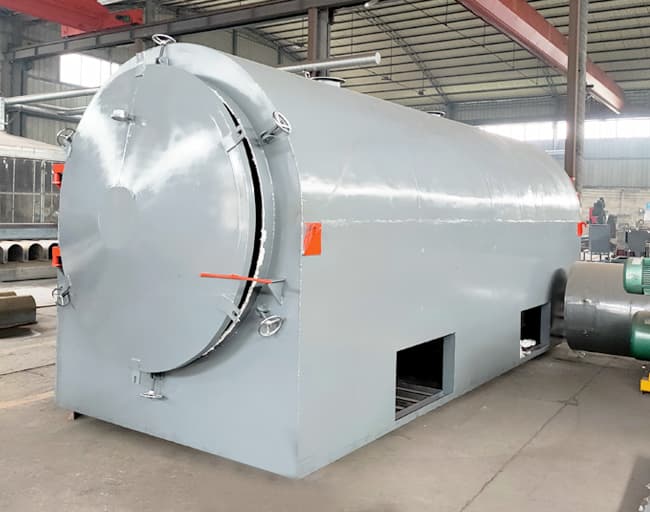

Horizontal Carbonization Furnace

Model

Power(kw)

Dimension (m)

Carbonization time(h)

Capacity(kg/furnace)

GM3300

/

5.3x3.3x3.5

12-24

1000—1500 (Machine-made charcoal)

GM5300

2000-2500 (Machine-made charcoal)

Dry Distillation Cartonization Furnace

Model

Power(kw)

Dimension (m)

Carbonization Time(h)

Capacity(kg/furnace)

GM1460

/

7.0x3.0x7.0

10-16

400—600(Machine-made charcoal)

GM1890

600—900(Machine-made charcoal)
