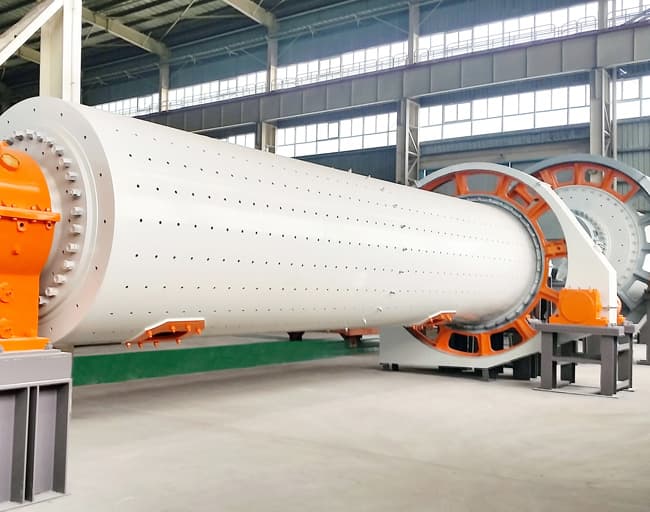

Wet Ball Mill

Capacity(t/h): 21-60
Feeding Size (mm): ≤25

Buyer Promotion ← September.01-30 Expo 2023 Pay $200 as $300, Pay $300 as $500

Send Inquiry Send Email +86-18595689287

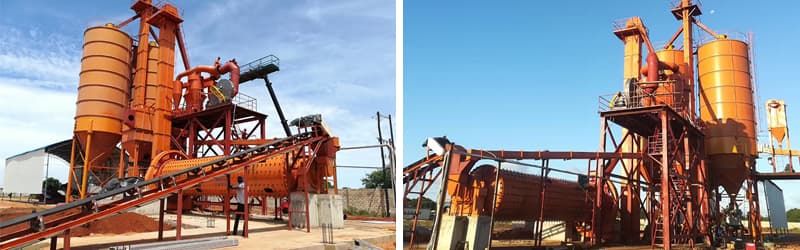

Introduction Video Specification Projects

Wet Ball Mill is named for loading rods as grinding medium, which normally works as wet overflow type grinding to be used in the field of mining plant, stone or sand plant, chemical plant, etc.

Our high-efficiency rod mill adopts rolling bearing support instead of sliding bearing support with bearing bush. Therefore, it has advantages of even discharging size and high capacity

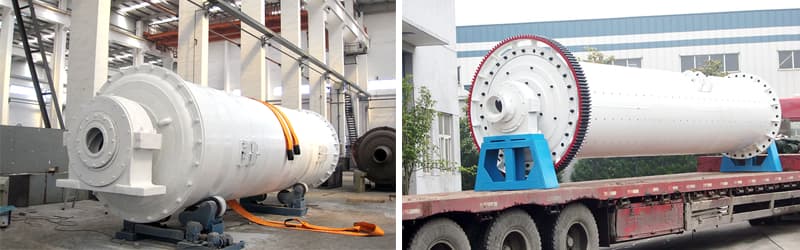

(Rod mill)

Video of Wet Ball Mill:

Advantage

Easy maintenance & operation.
Less over-crushing granule output evenly.
Regular movement inside mill and fast discharging.

Technical Data

Technical data:

type (m)	capacity (t/h)	rotary speed (r/min)	Feeding size (mm)	quantity of grinding medium(t)	Effective volume(m³)	(kW) Motor power	reducer	(t) weight
Φ2.4×13	21-23	20.3	≤25	65	51.7	800	JDX710	116
Φ2.6×13	28-32	19.61	≤25	75	60	800	JDX800	149
Φ3.0×13	33-37	18.08	≤25	108	80.9	1250	JDX900	172.3
Φ3.2×13	45-50	18.04	≤25	128	92.4	1600	MBY1000 JDX1000	218
Φ3.2×14	45-50	18.04	≤25	138	99.8	1800	MBYX1100	228
Φ3.5×13	55-60	17.09	≤25	160	111.2	2000	JDX1000 MBYX1100	250

(Main Technical Parameters):

Model	Barrel size (mm)	Effective volume （m³）	Balls weight （t）	Rotating speed（r/min）	Power （kw）	Discharge size （mm）	Capacity （t/h）	Weight （t）
MB0924	Φ900×2400		3.1	29	22	2.5-0.2	10-2.9	6.6
MB1224	φ1200×2400		6.5	27	37	2.5-0.2	13-5	13.5
MB1530	φ1500×3000	5.0	8	23	75	2.5-0.2	12-5.5	16.71
MB1830	φ1800×3000	6.5	17	22.8	130	2.5-0.2	20-9.5	29.8
MB2136	φ2100×3600	11.0	28	20.9	210	2.5-0.2	35-14.8	49.4
MB2436	φ2400×3600	14.6	37	19	280	2.5-0.2	55-26	61.0
MB2740	φ2700×4000	20.5	47	17.5	400	5-0.8	165-50	84.3
MB3040	φ3000×4000	25.9	50	16.2	500	5-0.8	206-62	130
MB3245	φ3200×4500	33	56	15.5	630	5-0.8	228-70	138
MB3654	φ3600×5400	50	94	14.5	1000	5-0.8	340-103	192
